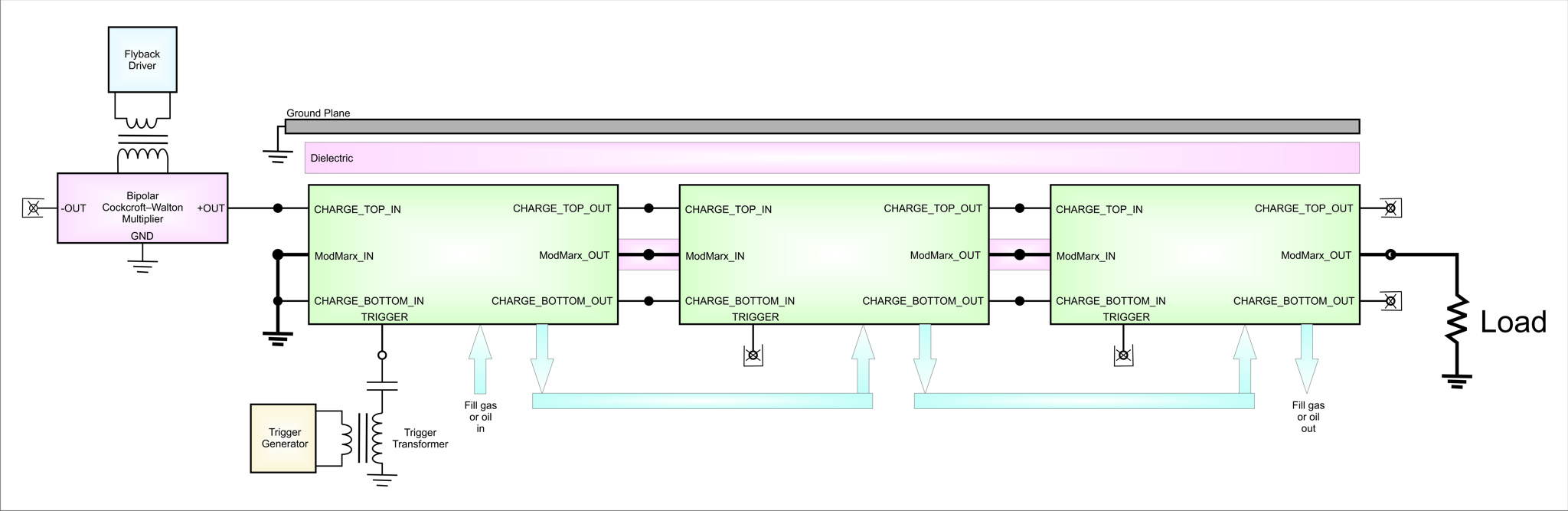

Figure 7 – Multiple ModuMarx modules may be stacked to increase the output voltage. Theoretically, the open-load output voltage of this 3-module Marx generator is 1.35MV.
High voltage Marx generator built from ModuMarx modules (c)2018 David Prutchi PhD
